Getting around
- tap HOME

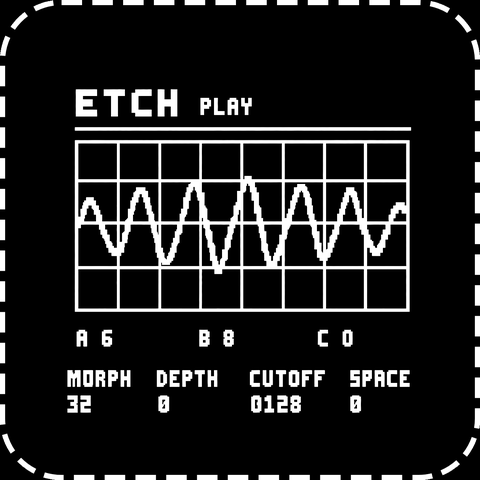

- PLAY: KNOB 1 MORPH, 2 ETCH depth, 3 CUTOFF, 4 SPACE.
- turn SELECT
- From PLAY: MORPH, FILTER, LIBRARY pages and back.
- hold HOME+turn PRESETS
- Hold 1.5 s: preset browser; turning loads each preset.
- turn PRESETS
- Outside the preset browser: tempo, 30-240 BPM.
- HOME twice
- From PLAY: PROJECTS browser (4 projects); SEL opens one.
- tap GLO
- GUIDE, FIFTHS (key and scale), SYSTEM; tap for next.
Playing
- tap OCT-
- Octave down on release (OCT+ up).
- hold OCT-+tap OCT+
- Switch POLY (8 voices) / MONO; let go at once.
- tap ARP+turn KNOB 1
- Arp mode: 0 OFF, 1-6 patterns, 7 RIFF.
- tap ARP+turn KNOB 4
- Mode 7: a new 16-step riff in key; else tempo.
- tap ARP+tap ARP
- ARP, ARP EDIT, CLOCK, RIFF LAB; tap for next.
- hold SEQ+power on
- Silent USB MIDI keyboard (channel 1); power off to leave.
Sound
- tap EDIT
- DRAW: KNOB 1 position, 2 height, 3 harmonic, 4 its amount.
- tap EDIT+turn SELECT
- Draw wave A, B or C; a note plays it alone.
- tap EDIT+tap ENV
- Undo a drawing step (LFO: redo), 16 deep.
- turn SELECT+turn ALGORITHM
- MORPH page: ETCH depth; KNOB 1/2 pick waves A/B.
- tap LFO
- MOD WAVE: KNOB 1 wave C, 2 DEPTH, 3 RATE, 4 PHASE/MORPH.
- tap LFO+tap LFO
- WAVE C FX, MOD MATRIX; in MONO also EVOLUTION, LIVING...
- tap ENV
- Amp envelope: ATTACK, DECAY, SUSTAIN, RELEASE.
Sequencer / patterns
- tap SEQ
- KNOB 1 LENGTH 8-256, 2 RATE, 3 SWING, 4 GATE.
- tap PLAY
- Start / stop the sequencer.
- tap SEQ+turn SELECT
- Pick a step; stopped, keys add or remove its notes.
- tap SEQ+tap REC
- Live recording on / off; starts playback if stopped.
- tap SEQ+turn ALGORITHM
- More editors: GRID, HOLD, LOCKS, BAKE, CLOCK.
- tap ARP+tap ARP+tap ARP+turn KNOB 1
- CLOCK: follow external MIDI clock on / off.
Effects
- tap FX
- DRIVE page: drive, filter type, cutoff, resonance.
- tap FX+turn SELECT
- 17 effects: chorus, delay, reverb ... tape, rotary, wah.
- tap FX+tap FX
- WAVE A FX, then B: two inserts each (RING, BIT, FOLD...).
- tap EDIT+tap FX
- WFX 1/2: effects baked into the wave; SAVE twice bakes.
Saving & loading
- tap SAVE+turn SELECT
- Save a PROJECT or a PRESET.
- tap SAVE+turn KNOB 1
- Slot; KNOB 2 letter position, 3 letter, 4 back: delete.
- SAVE twice
- Store it; a used slot asks for one more SAVE.
- tap EDIT+tap SAVE
- Save the drawn wave in the library (64 slots).
- turn SELECT+tap REC+tap REC
- LIBRARY: load slot (KNOB 1) into wave A/B/C (KNOB 2).
Recovery
- hold REC+power on
- Silent, read-only Safe Mode.
- hold OCT-+power on
- Update loader for the web installer.
- hold HOME+hold PLAY
- 1 s after AUDIO STOP: restart the sound engine.
Good to know
- Holding OCT- and OCT+ together for 5 seconds also jumps to the update loader: tap them together for POLY / MONO and let go.
- Saving a preset does not save a newly drawn wave: save the wave first (EDIT, SAVE), then the preset.
- 16 factory waves (SINE, SAW ... SCRATCH) and 32 presets to start from; a save needs a name (KNOB 3 picks letters).
- EVOLUTION, ORGANIC, SPECTRAL, LIVING and PATCH BLEND only appear in MONO: tap OCT- and OCT+ together, then LFO.
- Wave C does nothing at DEPTH 0: raise ETCH (KNOB 2 on PLAY) to hear it.
- Experimental firmware: keep a stock firmware file at hand before installing.
A community cheat sheet by the hub, not by the firmware's makers: when in doubt, their manual is right.
