Open firmware for the SMK-37

The 37-key controller with pads, knobs, faders and wheels, turned into a synth, a groovebox, a drone machine or a chord harp: 25 open-source firmwares, made for it or ported from the FM-1, each installed from its maker's installer. Chrome or Edge.

Not connected
☕ Buy me a coffee
Pick your keyboard's own model in the installer. Most firmwares here come as three packages: SMK-37 Pro, SMK-37 Elite and MKE-P37 (a Starrykey 37 Play takes the Pro's). The FM-1 ports are the firmwares of the FM-1 hub, built for the SMK-37 by genkigenki with fm1-to-smk37. Everything installs in Chrome or Edge over USB from its maker's installer. Back up your sounds first; M-Vave's updater takes the keyboard back to its factory firmware, and holding OCT− while switching it on is the rescue.
Felucca SMK on the SMK-37

Felucca SMK0.9.27

synthgrooveboxPro · Elite

Felucca's synthesis and sequencing on the SMK's 37 keys, pads, knobs, faders, wheels and display: engines from FM6 to phase distortion, chiptune and samples, a step sequencer, a browser Studio and a simulator.

Its installer builds the package from the keyboard's official firmware 016 and its calibration: 016 first, back up before.
GPL-3.0 · source
OberVave on the SMK-37

OberVave1.3.1 beta

betasynthvintagePro · Elite · MKE-P37

An 8-voice analog-style poly after the classic American polys of 1979-84, on four tracks: each its own sound, arp and sequence, a mixer with chorus, delay, plate reverb and drive sends, a master with DJ filter and compressor; the step sequencer on the 16 pads, filter and effects on the fader banks.

GPL-3.0 · source
Makkuro37 on the SMK-37

Makkuro370.1

synthambient · dronePro · Elite · MKE-P37

A microtonal drone synth: eight drones in eight columns, each a little soot creature on the screen, the pads gate them, a CHAOS pad, fader banks, 96 presets in six themes. After the Subharmonicon and the Horn of Abraxas.

GPL-3.0 · source

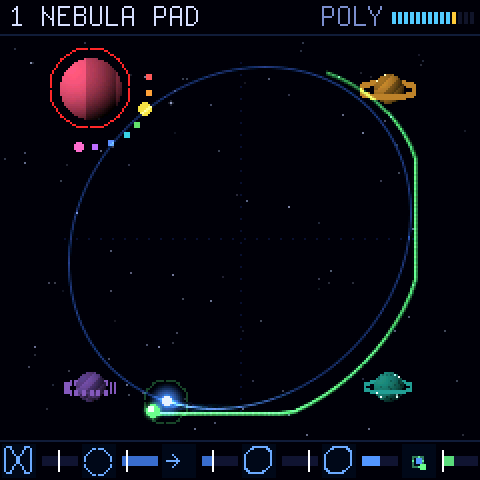

Vector37 on the SMK-37

Vector370.2.2

synthPro · Elite · MKE-P37

An orbiting overtone synth: four corners of two overtone generators each, a sun on a path and a moon around it decide how much of each you hear. Pads and knobs are the planets, the faders the path; eight sounds, MIDI out on the 3.5 mm jack. After the Beetlecrab Vector.

GPL-3.0 · source
Speak37 on the SMK-37

Speak371.0

synthotherPro · Elite · MKE-P37

A talking synth: it sings and speaks what you play, with MOPE, a gloomy robot who judges your chords. An FM-1 build too.

GPL-3.0 · source
Skiff on the SMK-37

Skiff1.4

grooveboxsynthPro

Six tracks of synths and drums with a groovebox's workflow, the same engines, sequencer and screens as on the FM-1, played from 37 velocity keys; the pads, faders and wheels do more. Stands on genkigenki's SMK-37 port of Felucca.

Needs M-VAVE's V016 on the keyboard first and a flash backup (it holds the keyboard's key calibration): see its SMK37.md.
GPL-3.0 · source
FOMAJAM on the SMK-37

FOMAJAM0.1.9

drums · samplerPro · Elite · MKE-P37

FOMAJAM's nine tracks on the SMK-37: modelled and ROM drum machines, Felucca's synth engines, STRING and SUPERSAW, MIDI out and 40 patterns of 16 steps, the FM-1's controls on the keyboard's panel. A package for each model.

GPL-3.0 · source
Frodhes on the SMK-37

Frodhes0.9.9

synthvintagePro · Elite · MKE-P37

Frodhes: a physical-model electric piano for the SMK-37's 37 keys, with vibraphone and marimba engines, a full effects chain, an arpeggiator, a step sequencer and presets. Official builds for the SMK-37 Pro, SMK-37 Elite and MKE-P37.

GPL-3.0 · source

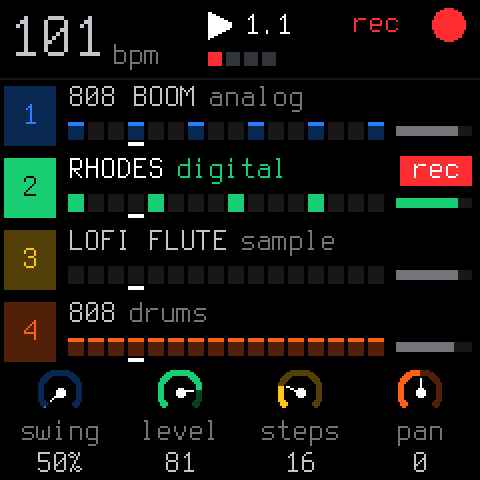

Snoop37 on the SMK-37

Snoop372.6.5

SLOOP by isod89, SMK-37 build by genkigenki
FM-1 portgrooveboxPro · Elite · MKE-P37

SLOOP, the four-track looper groovebox, with the SMK's pads in track colours, a pad sound picker, fader banks and drums on the outer keys.

GPL-3.0 · source

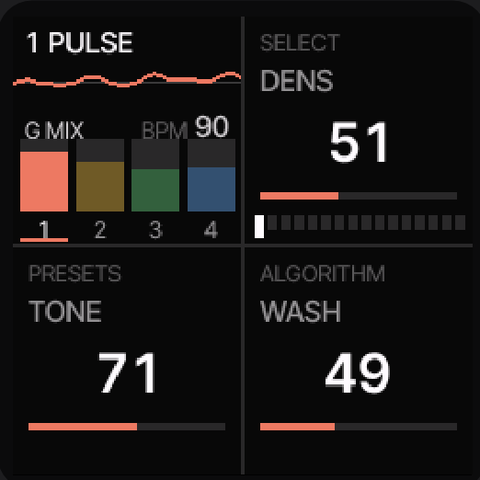

MAKU on the SMK-37

MAKU0.1

MAKU by okumurari, SMK-37 build by genkigenki
FM-1 portgrooveboxPro · Elite · MKE-P37

An always-on ambience machine: power it on and a new, random, in-key world is already playing; verbs on the buttons and wheels.

GPL-3.0 · source
winampFM Synth on the SMK-37

winampFM Synth0.1

winampFM Synth by Hericdk, SMK-37 build by genkigenki
FM-1 portgrooveboxPro · Elite · MKE-P37

A synth groovebox in the look of Winamp 2.x, built on SLOOP: player, playlist, effect sliders and a visualizer.

GPL-3.0 · source
Melodee on the SMK-37

Melodee1.4.3

Melodee by keremimo, SMK-37 build by genkigenki
FM-1 portgrooveboxPro · Elite · MKE-P37

Melodee on the SMK-37's keys, pads and faders.

SMK-37 Elite: wait with this one, an Elite report is being checked. The Pro build is tested.
GPL-3.0 · source
+

Made firmware for the SMK-37?

Open source and ready to install? It gets its card here.
