The Firmware Hub · Elektron Model:Cycles & Model:Samples · 5 mods

Open mods for the Model:Cycles

Elektron's little groovebox with more inside: a sampler machine, Syntakt engines, a 909 kit, every track on its own USB channel. 5 open-source mods of the official OS, for the Model:Cycles and, some of them, the Model:Samples.

☕ Support us YouTube
You bring Elektron's own OS. None of these ships Elektron's firmware: download the official OS 1.13 .syx from elektron.se, and each mod builds its version from that file, on your computer. Some do it in a web flasher (Chrome or Edge), some on the command line. Back up your projects and samples first (Elektron Transfer), and keep the official .syx: sending it is the way back. These are independent projects, not made or endorsed by Elektron; a modified OS is at your own risk.
Modded Cycles on the Model:Cycles

Modded CyclesOS 1.13

by 18nelli18
grooveboxdrums · samplerModel:Cycles

A community OS that keeps Elektron's workflow and adds to it: a sampler as the 7th machine with seven playback modes, five Syntakt machines read from your own Syntakt OS, six channels of USB audio and more.

Built in your browser from your own official Elektron OS files, sent over USB. Back to the official OS in one click; RECOVERY.md if it goes wrong.
Open its web flasher ↗
MIT · source

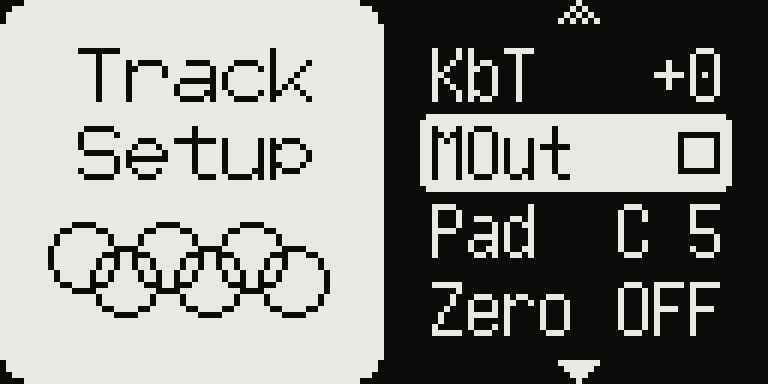

Model Tweaks on the Model:Cycles

Model Tweaks2.2.0

by drumkilla
grooveboxdrums · samplerModel:Cycles · Model:Samples

A box of firmware mods to pick from: 16 channels of USB audio, stereo samples, time-stretch, an amp attack, a sample editor with zoom and zero crossings, latching mutes, trig preview and more.

Pick the mods in its web flasher, which links them into your own official .syx; send the result over USB or with Elektron Transfer.
Open its web flasher ↗
MIT · source
Multi Outputscottmetoyer

Multi OutputOS 1.13

by scottmetoyer
otherModel:Samples · Model:Cycles

Six channels of USB audio, one per track, instead of only the stereo mix: record each track on its own in your DAW.

Command line (Python). Tested on a Model:Samples; the Model:Cycles build has not been flashed to a real Cycles yet.
How to build it ↗
MIT · source
Model909DMDaudio

Model909OS 1.13

by DMDaudio
betadrums · samplerModel:Cycles

A TR-909 kit for the Cycles: circuit-modelled kick, snare, rim, clap and toms, with hats and cymbals from four samples of your own. A Modded Cycles tweak.

Experimental. Command line (Python and ffmpeg) with your own official .syx and four samples.
How to build it ↗
MIT · source
Cycles One-Shotdurchgemacht

Cycles One-Shot0.8

by durchgemacht
betadrums · samplerModel:Cycles

SAMPLE as a 7th machine: one-shot samples from the +Drive, played as cleanly as on the Model:Samples at any pitch, with start, length and its filter. A browser page puts your samples on the +Drive.

Built with make from your own official .syx, then installed like an official OS update.
How to build it ↗
MIT · source
+

Made a mod for the Cycles?

Open source, with a licence, built from the official OS? It gets its card here.
