Notes; hold SAVE: recall A-D; GLO: mute T1-T4; SEQ: CLEAR, RANDOM, SHIFT <, SHIFT >Notes; hold SAVE: save to A-D; GLO: solo T1-T4; SEQ: COPY, PASTE, DOUBLE, MUTATE
Getting around
- tap HOME

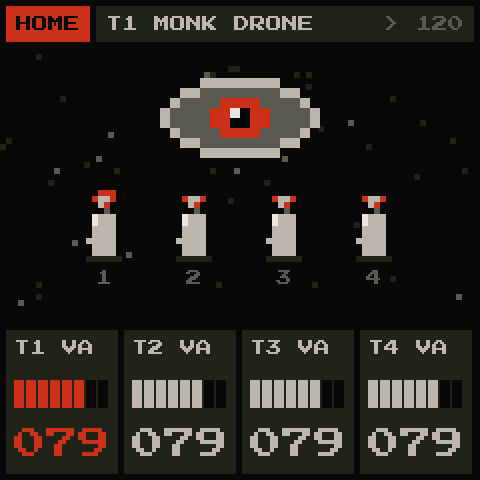

- HOME: the track's VOLUME, CUTOFF, RESONANCE, FX on KNOB 1-4.
- turn ALGORITHM
- Pick track T1-T4, on every page.
- turn SELECT
- On HOME: tempo (20-300 BPM). On the sequencer: the cursor.
- tap EDIT+tap EDIT
- A button again: its next page (the header says where you are).
- tap OCT-
- Octave down (OCT+ up), two each way.
- hold EDIT+tap OCT-
- Undo the last edit (OCT+: redo).
Playing
- turn PRESETS
- Next sound for the track: the 40 factory sounds by category, then yours.
- EDIT twice+turn KNOB 2
- SOURCE page: LATCH ON, a key starts its note, again stops it (drones).
- hold SEL
- Let go: chord mode on / off for the track (one key, a whole chord).
- tap SEL
- SCALE: ROOT, SCALE (13, for all tracks): the keys snap to it.
- SEL twice
- CHORD: CHORD TYPE (SCALE, MIN ... CLUSTER), VOICING.
- hold ARP
- Arpeggiator on / off for the track.
- tap ARP
- ARP: MODE, RATE, OCTAVES (1-4), GATE.
- hold GLO+white key 1-4
- Mute T1-T4 (white keys 5-8: solo).
Sound
- tap EDIT
- SOUND: the source's four knobs (VA: WAVE, DETUNE, CUTOFF, RESONANCE).
- EDIT twice+turn KNOB 1
- SOURCE: VA, FM, SAMPLE, VOICE, WHEEL, PHYS, PHASE.
- EDIT twice
- On an FM track: FM ALGO (ALGO 1-32, FEEDBACK, OP, FINE), then FM OP.
- tap ENV
- ATTACK, DECAY, SUSTAIN, RELEASE (up to 20 s).
- tap LFO
- RATE (60 s a cycle to 20 Hz), DEPTH, DESTINATION, SHAPE; never restarts.
- HOME twice
- MIXER 1: LEVEL, DLY SEND, REV SEND, GRAIN SEND; again: MIXER 2 (PAN).
Sequencer / patterns
- tap PLAY
- Start / stop all four tracks.
- tap REC
- Stopped: a key writes the cursor's step, cursor on. Playing: on the nearest step.
- tap SEQ
- GRID: the step's NOTE (all down: OFF), CHANCE, RATCHET, LENGTH.
- SEQ twice
- PATTERN SETTINGS: STEPS (1-64), DIVISION, SWING, PLAY MODE.
- hold SEQ+turn SELECT
- The track's pattern length.
- hold SEQ+white key 1-8
- CLEAR, RANDOM, SHIFT <, SHIFT >, COPY, PASTE, DOUBLE, MUTATE.
- tap SEQ+hold SEL+turn KNOB 1
- Lock a sound knob on the selected step (KNOB 1-4).
- hold SEL+tap OCT-
- Clear the selected step's locks.
- tap GLO
- SONG: SECTION, PATTERN (A-D / END), REPEATS, MODE (OFF, SONG, SONG LOOP).
- tap GLO+tap REC+tap PLAY
- Record a song: the slots you switch to are written into the chain.
Effects
- tap FX
- TAPE: WOW, SATURATION, TONE, HISS on the whole mix (all 0: off).
- FX twice
- GRAIN: SIZE, DENSITY, SCATTER, MIX.
- tap FX+tap FX+tap FX
- DELAY: TIME, FEEDBACK, WEAR, MIX.
- tap FX+tap FX+tap FX+tap FX
- SPACE: SIZE (to ~32 s, then INF), DAMP, MIX, PRE-DELAY.
- tap HOME+turn KNOB 4
- FX: the track's three sends together, 0-200 %.
- hold FX
- PERFORM screen; let go: back where you were.
- hold FX+white key 1
- FREEZE the grain cloud; again: let it go.
- hold FX+white key 2-8
- While held: REV THROW, ECHO THROW, TAPE STOP, REVERSE, FILTER DOWN, FILTER UP, STUTTER.
Saving & loading
- hold SAVE+white key 5-8
- Save into slot A-D (used: press again within 3 s).
- hold SAVE+white key 1-4
- Recall slot A-D (playing: at the next bar).
- tap SAVE
- SOUNDS: 64 own slots; SLOT, CATEGORY, TYPE, ACTION (LOAD, SAVE, CLEAR).
- SAVE twice
- PROJECTS: SLOT A-D (KNOB 1), ACTION LOAD, SAVE, ERASE, NEW (KNOB 4).
- tap SAVE+tap OCT+
- Do the ACTION; OCT- backs out.
Settings
- hold HOME
- SYSTEM: COLOUR, MIDI CHANNEL, TUNE (+-50 cents), SCREEN OFF.
- hold HOME+turn KNOB 2
- MIDI CHANNEL: 1-4 (T1-T4) up to 13-16, or ALL > SEL.
- hold HOME+tap HOME
- SYSTEM 2: MIDI LEARN, SEQ MIDI OUT, SAMPLES; CPU NOW / PEAK.
- hold HOME+tap HOME+turn KNOB 1
- MIDI LEARN: LEARN, turn an FM-1 knob, then a controller's (32 links).
- hold HOME+tap HOME+turn KNOB 2
- SEQ MIDI OUT: the steps' and arps' notes out over USB.
- hold HOME+tap HOME+turn KNOB 3
- SAMPLES: RESTORE, then OCT+: the four factory samples back.
- hold OCT-+tap OCT+
- Reset CPU PEAK.
Good to know
- Nothing to save by hand: stopped and untouched for 2.5 s, GR!MM saves everything and comes back as you left it. It waits while something still sounds (SAVES WHEN SILENT).
- Six voices are shared by all four tracks; a seventh note takes the oldest. Big chords use more of them.
- On the sequencer pages PRESETS sets the tempo instead of the sound.
- SPACE's SIZE all the way up is INF: the reverb holds what is in it, like a freeze.
- The four sample slots hold URCHIN, LEAVE, NIKOLAI and M-SOFT; load your own WAVs (6.6 s each) with GR!MM's browser editor.
- Something wrong after an update? Hold OCT- while powering on: USB rescue for reinstalling.
A community cheat sheet by the hub, not by the firmware's makers: when in doubt, their manual is right.
