Drums: kicksDrums: snare, clapDrums: hats, pedal hatDrums: rim, snare 2Drums: low tom, high tomDrums: crash, rideDrums: shaker, conga, cowbellDrums: same sound as white key to the left
Getting around
- tap HOME
- Back to the TRACKS screen.
- turn ALGORITHM
- Pick the track: 1-3 DX7 synths, 4 FM drums.
- turn SELECT
- Tempo, on almost every page (not in the DX7 voice list).
- tap LFO
- LFO pages; tap again for the next page (ENV likewise).
- hold FX+tap HOME
- Lock a held layer open; any other button closes it.
- hold HOME
- Settings menu: SCREEN, LIGHTS, AUDIO, SYSTEM; OCT- closes it.
Playing
- turn PRESETS
- The track's sound: DX7 voices, your bank, user presets; drums: kit.
- tap OCT-
- Octave down; both OCT buttons together: back to 0.
- hold OCT-+white key 1-16
- Drum track: ghost hit (OCT+: hard hit).
- hold SEL+white key 1-16
- Set the song's key for all synths.
- hold SEL+turn KNOB 1
- One-key chords: TRIAD, 7TH, 9TH, SUS4, POWER.
- hold ARP+white key 1-16
- Note repeat / drum roll; KNOB 1 sets its rate.
- tap ARP+turn KNOB 1
- Arp mode; OMNI makes the keys a chord harp.
Sound
- tap EDIT
- Synth track: the DX7 voice list. Drum track: the drum screen.
- turn SELECT+turn ALGORITHM
- Voice list: SELECT picks a row, ALGORITHM sets its value.
- turn SELECT+tap EDIT
- Voice list: open OP1-OP6, Pitch Env, LFO; HOME goes back.
- turn PRESETS
- Voice list: jump straight to the next / previous operator.
- turn KNOB 1
- Voice list: low-pass CUT (KNOB 2 RESO, 3 REL, 4 FDBK).
- tap SAVE
- Voice list: store your voice edits into the DX7 bank.
- turn KNOB 2
- On TRACKS: level of the selected track (KNOB 4 pan).
- hold GLO+turn KNOB 1
- Level of track 1 (KNOB 2-4: tracks 2-4).
Sequencer / patterns
- tap PLAY
- Start / stop all four tracks.
- tap REC
- Playing: record now, on top. Stopped: arm, first note starts.
- tap REC
- Empty song: play freely, REC on the next 1 closes the loop.
- hold REC
- Hold 2 seconds: clear the selected track.
- hold EDIT+tap OCT-
- Undo (OCT+: redo).
- hold SEQ+white key 1-16
- Set or clear steps 1-16 (drums: the sound on KNOB 1).
- hold SEQ+turn KNOB 4
- Pattern length up to 128 (KNOB 2 step size, KNOB 3 swing).
- hold EDIT+white key 1-16
- Erase that note or drum sound from the loop.
- hold GLO+white key 1-4
- Mute tracks 1-4 (keys 5-8: solo).
- hold GLO+white key 16
- Tap tempo.
Effects
- hold FX+white key 1-16
- Punch-in effect while held (loops, stutter, reverse...).
- hold FX+black key 1-11
- More punch-ins: kills, rewind, freeze, fade out...
- hold FX+turn KNOB 1
- Master DJ filter (KNOB 2 dust, KNOB 3 duck).
- hold FX+hold OCT-
- Reverb throw while held (OCT+: echo throw).
- tap FX
- Track sends; tap again: DIST, CHORUS, DELAY, REVERB, SLICER, INSERT.
Saving & loading
- hold SAVE+white key 5-8
- Save the loop as section A-D (used: press twice).
- hold SAVE+white key 1-4
- Play section A-D (on the next bar if playing).
- tap SAVE
- On TRACKS: song screen; elsewhere: presets and section pages.
- tap SAVE+tap SAVE
- Drum kit or sound page: store your kit as MY KIT.
Recovery
- hold OCT-+power on
- USB rescue mode: reinstall from the web installer.
- hold OCT-+hold OCT++power on
- Hardware calibration: teach each button and knob.
- hold OCT-+hold OCT+
- Stopped, 5 seconds: update mode (UBOOT) for the installer.
Good to know

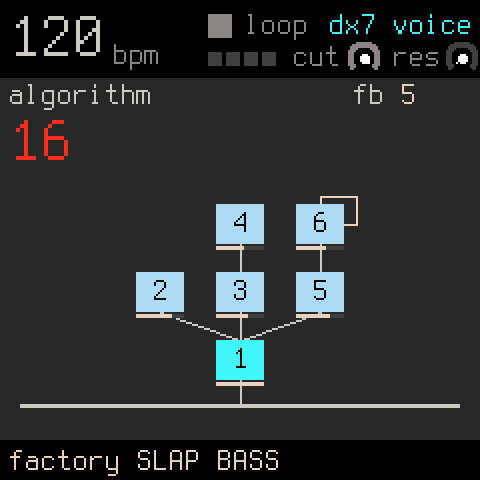

- Every synth track is a real DX7: 6 operators, 32 algorithms, Dexed's engine; at CUT 127 a patch sounds as on a DX7.
- PRESETS runs through 20 factory voices (EPIANO, FM BASS, BRASS...), then the 32 voices of your DX7 bank, then user presets.
- Load your own DX7 banks (.syx, 32 voices) in the web editor: 8 banks fit in flash; the voice list's Bank row picks one.
- Drums are FM too: kits DX KIT, 808 FM, ELECTRO, METAL and MY KIT. On the drum sound page the key you play picks the sound, KNOB 1-4 = TUNE, DECAY, SWEEP, BRIGHT.
- Every function button is a layer: hold it and the keys and knobs change job; a short tap opens its pages.
- Patterns go up to 128 steps: hold SEQ and tap OCT- / OCT+ for the 16-step pages.
- MIDI: tap GLO and tap again for MIDI, MIDI 2, MIDI 3 (a channel per track, clock); GLO + black key 1 = MIDI LEARN.
- Autosave: stop and leave it 2.5 s; it comes back as you left it at power-on.
A community cheat sheet by the hub, not by the firmware's makers: when in doubt, their manual is right.
